800M4QT 1
Part of the 800M4QT Series
Ordering Code: 0388002
UPC: 098268279399

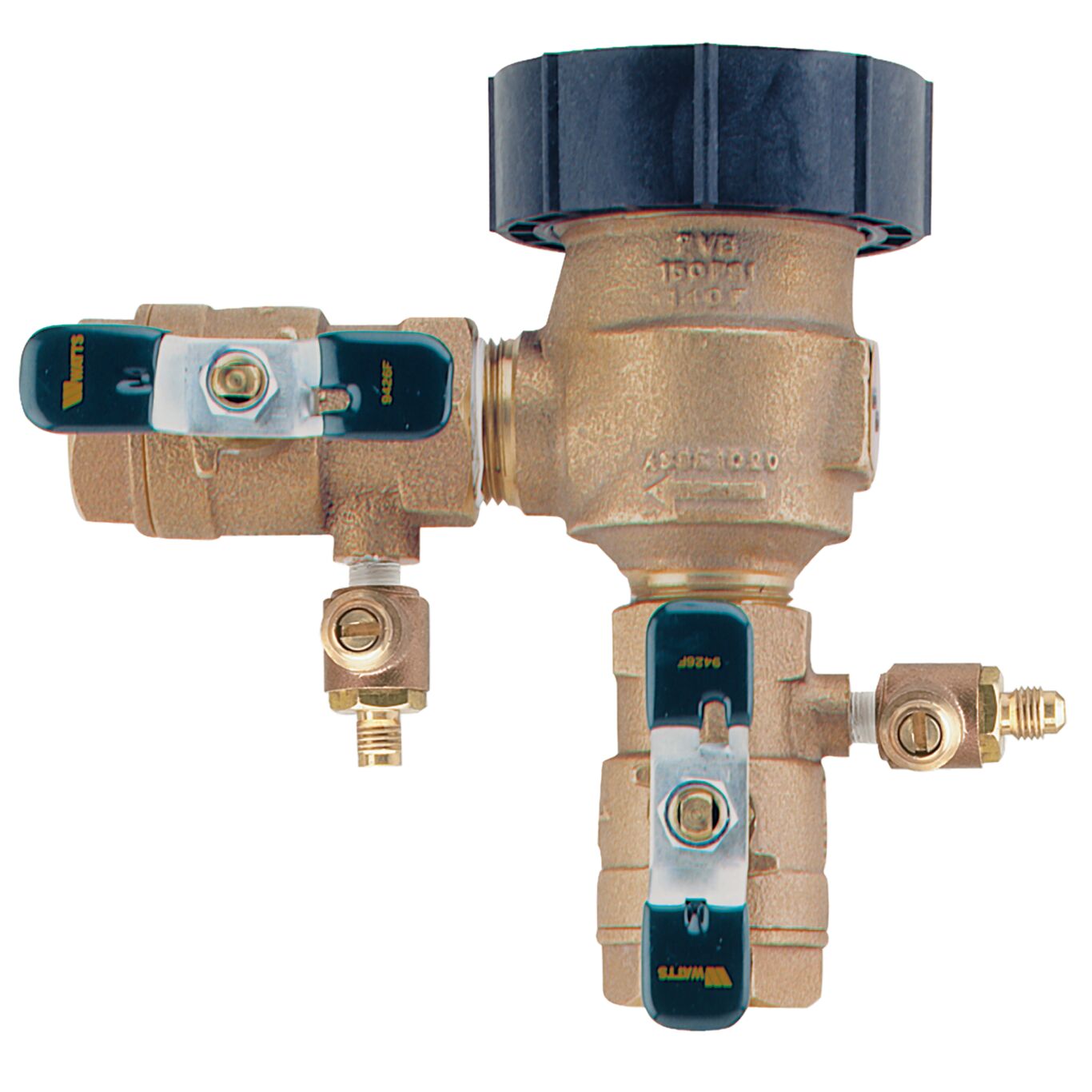

1 In Bronze Anti-Siphon Pressure Vacuum Breaker Backflow Preventer, Quarter Turn Shutoff, Tee Handles
This 1 inch anti-siphon pressure vacuum breaker backflow preventer helps prevent the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of bronze body construction, silicone rubber check valve disc, plastic check valve seat, stainless steel springs, a bonnet with silicone rubber O-ring seal, a lightweight plastic disc float, tee handle shutoffs, and test cocks for winterization draining. It is ideal in health hazard continuous pressure applications such as irrigation systems and industrial process water systems where the water enters the equipment at or below its flood rim. The maximum pressure is 150 psi (10.3 bar) and the minimum pressure is 15 psi (55kPa).
- For use in health hazard cross connections and continuous pressure applications
- Durable bronze body construction
- Designed for minimum head loss
- Includes female NPT inlet and outlet with quarter turn shutoffs
- Internal parts easily serviceable in line from top of unit
- Minimum pressure of 15 psi and maximum pressure of 150 psi
Specifications | |
---|---|
AdditionalTradeItemDescription_en-US | 1 IN Bronze Anti-Siphon Pressure Vacuum Breaker Backflow Preventer, Quarter Turn Shutoff, Tee Handles |
BuyAmericanAct | YES |
EANUCCCode | 098268279399 |
KeyWord1_en-US | bronze,1/4turn,shut-off,vacuum,quarterturn,pressure,breaker,vacbreaker,anti-siphon,150psi |
MaximumTemperature-Fahrenheit | 140 |
MaximumWorkingPressure-BAR | 10.30 |
MaximumWorkingPressure-PSI | 150 |
MinimumTemperature-Celsius | 0.50 |
MinimumTemperature-Fahrenheit | 33 |
