709DCDA-OSY-GPM 4
Part of the 709DCDA Series
Ordering Code: 0385680
UPC: 098268022216

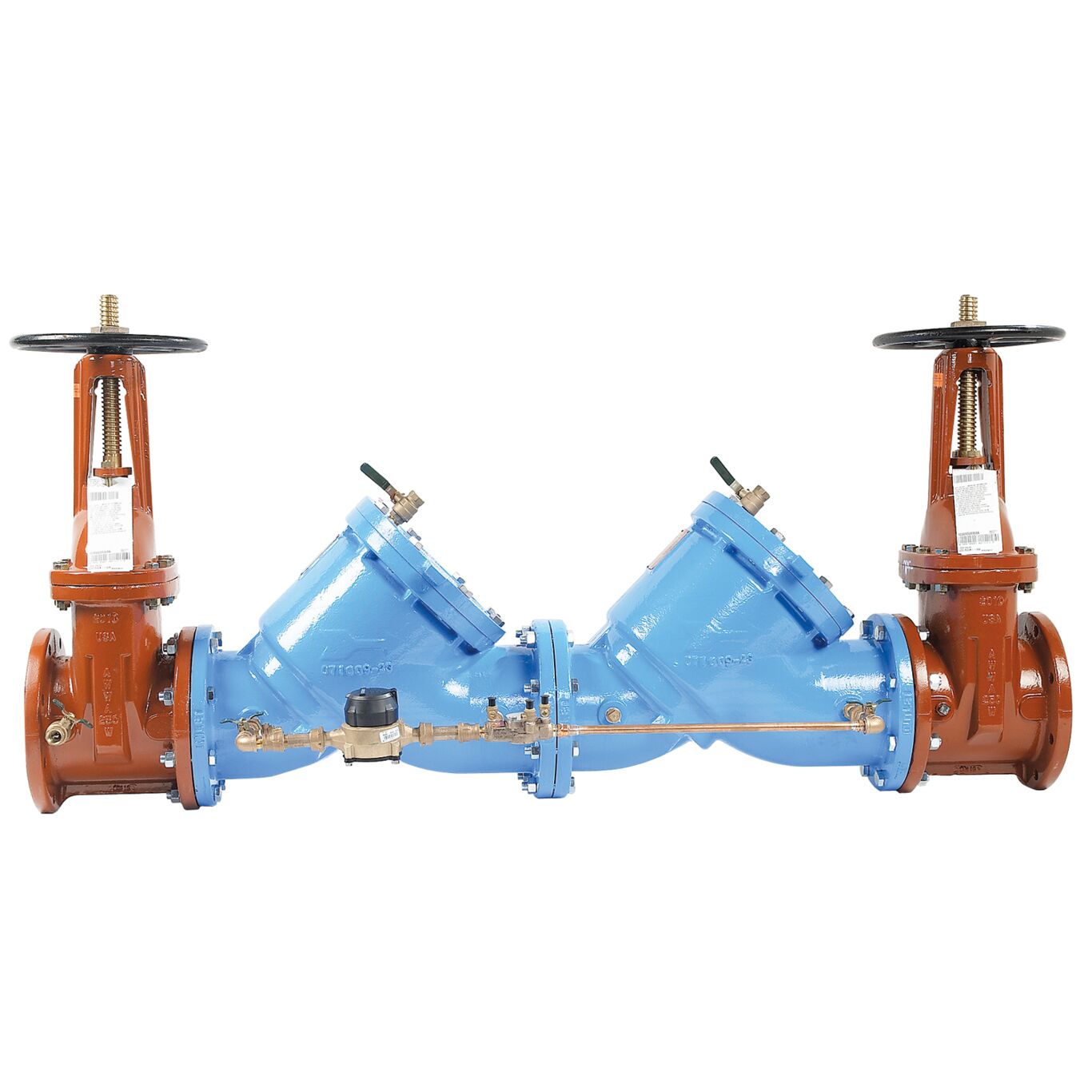

4 In Cast Iron Double Check Detector Assembly Backflow Preventer, OSY Shutoffs, Gallons/Minute Meter, Epoxy Coated Using ArmorTek Technology
This 4 inch double check detector backflow preventer assembly prevents backflow of non-health hazard fire protection system substances from being pumped or siphoned into the potable water supply. It incorporates a gallons per minute meter to detect ground leaks and unauthorized illegal taps, greatly reducing annual water expenses. It consists of a fused epoxy coated cast iron body using ArmorTek(TM) coating technology for advanced corrosion resistance construction. Its modular check design facilitate simple and easy installation and maintenance. The coating on this backflow assembly uses ArmorTek technology to resist corrosion due to microbial induced corrosion (MIC) or exposed metal substrate. Maximum working pressure is 175 psi (12.06 bar).
| Specifications | |
|---|---|
| AdditionalTradeItemDescription_en-US | 4 In Cast Iron Double Check Detector Assembly Backflow Preventer, OSY Shutoffs, Gallons/Minute Meter, Epoxy Coated Using ArmorTek Technology |
| ArmorTekTechnology | Yes |
| BodyFinish | Epoxy Coated Using ArmorTek Technology |
| BuyAmericanAct | NO |
| EANUCCCode | 098268022216 |
| KeyWord1_en-US | dcda, double check, detector, osy, bypass, meter, epoxy coated, cast iron, gpm, armortek |
| MaximumTemperature-Fahrenheit | 110 |
| MaximumWorkingPressure-BAR | 12.10 |
| MaximumWorkingPressure-PSI | 175 |
| MinimumTemperature-Celsius | 0.50 |
| MinimumTemperature-Fahrenheit | 33 |
| TrademarkName-Primary | None |
